Fire-Rated Insulated Access Doors

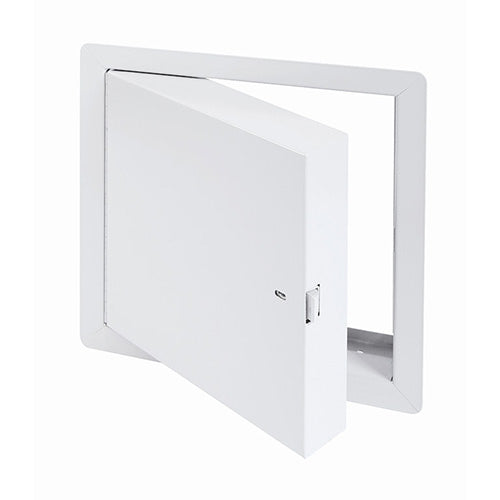

Fire-Rated Insulated Access Door with Exposed Flange
self-latching tool-key operated slam latch and ring operated slam latch

The fire-rated insulated access door can be installed on fire-rated walls and ceilings.

Specifications

Material: 20-gauge galvanneal steel door and 16-gauge cold rolled steel frame

Hinge: Continuous piano hinge. Hinge location: Hinges must be located on the second dimension (height).

Locking mechanism: Self-latching tool-key operated slam latch and ring-operated slam latch, both included.

Flange: 1" exposed flange, made of cold rolled steel

Frame: 2½ " in depth, made of cold rolled steel

Rough opening: Door sizes + ¼" or + 6mm

Insulation: 2" thick fire rated mineral wool

Inside panel release: Mechanisms to allow panels to open from inside, standard on all doors over 12" X 12 inches.

Finish: High quality white powder coat primer.

Packaging: Individually wrapped, 1 door per box.

More info: https://cendrex.com/en/product/pfi-00/
